Neutronics Refrigerant Identifier R22 Mini ID™ - RI-MINIIDR

DOWNLOAD BROCHURE

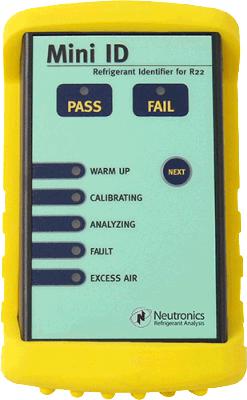

Neutronics Mini ID™ R22 is an affordable, compact and hand-held R22 identifier designed to protect your equipment and avoid contamination of your R22 supply.

This tool can be used on HVACR systems or on virgin cylinders to ‘PASS’ or ‘FAIL’ R22 before recovery or use.

FEATURES AND BENEFITS

• Easy to use with ‘PASS’ or ‘FAIL’ LED indication
• Compact and lightweight design
• Simple one button operation
• Step by step LED indications of the gas sampling process
• 1/4” Flare Sampling Hose
• Rugged construction and housing
• Hand-held and extremely portable

SPECIFICATIONS

• Refrigerant Detected: R22 (Chlorodifluoromethane)
• Accuracy: PASS/FAIL — 95% Pure R22
• Power Requirements: 9 Volt Battery (Optional 110/ 220 VAC)
• Approvals: UL, CE
• User Interface: Membrane type with visual indicators and function key
• Calibration Method: Electric internal pump
• Storage Temperature: 14° to 120° F
• Operating Temperature: 50° to 120° C
• Construction Material: Molded ABS housing/molded rubber sleeve
• Weight: 2.0 lb.
