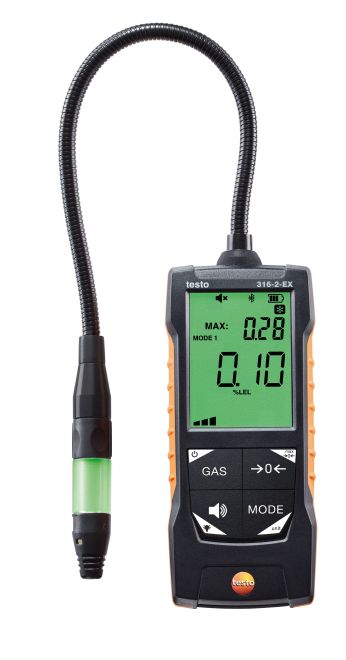

Testo 316-2-EX is an ultimate professional instrument featuring the world’s first 2-in-1 sensor for gas fittings and heat pumps - perfect if you deal with fuel gases and refrigerants. Also offers all premium functions like 316-1-EX including explosion protection (ATEX), fine mode and auto-identification of the most common gas types.
| Measurement Parameters | ppm, vol% , % LEL, g/a |
| Detectable Gases | Methane, Propane, Hydrogen, Butane, Tracer Gas(H2) |
| Measuring Range |
Methane (CH4): 50 ppm to 4.0 vol.% Propane (C3H8): 50 ppm to 1.9 vol.% Hydrogen (H2): 50 ppm to 4.0 vol.% Butane (C4H10): 50 ppm to 1.5 vol.% Refrigerant: lower response threshold (detection limit): 3 g/year |
| Refrigerant | R1234yf, R134A, R404A, R407C, R410A, R1234ze, R290, R417A, R513A, R32, R449A, R22 |
| Resolution | 1 ppm 0.01 VOL% 1% LEL |
| Response Time | < 2 sec |
| Leak Alarm | 3-colour LED on the sensor head 3-colour display backlight Acoustic App |
| General technical data | |
| Operating temperature | -5 to +50 °C |
| Operating Humidity |
0 to 80%RH |
| Storage Temperature | -20 to +50 °C |
| Charging Temperature | -5 to 45% °C |
| Battery life | >10h |
| EX-protection | ATEX II 2 G Ex ib IIC T1 Gb |
| Battery Type | Rechargeable USB charger (standard) with connection via microB |
| Dimension | 150mm x 66.5mm x 37.5mm Length with Gooseneck Arm 545 mm |
| Weight | 425g |
