Fieldpiece Arctic Essentials

Grab the Arctic Essentials that you need to tackle the job head on!

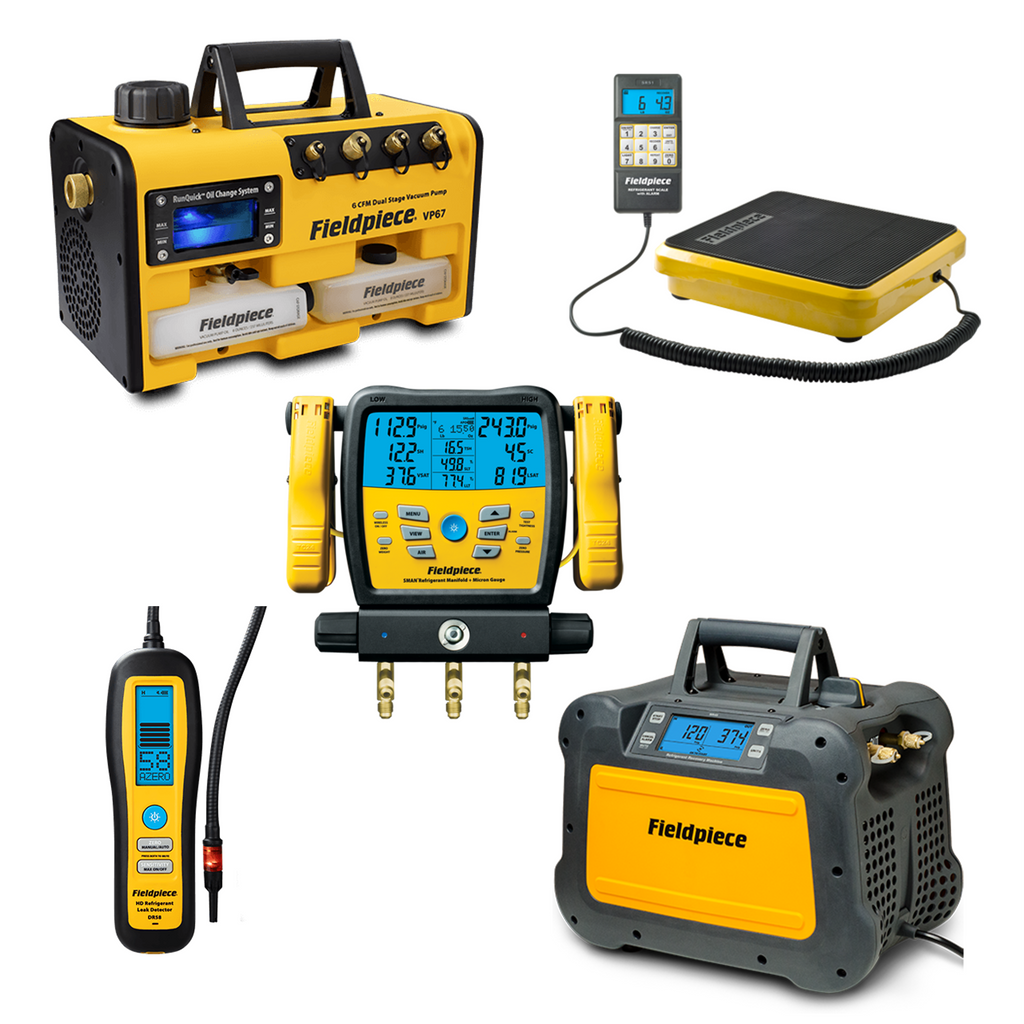

WHAT'S INCLUDED

This Cool Tools HVAC-R exclusive Arctic Essentials Kit for air conditioning and refrigeration includes:

1 x Fieldpiece VP67 170 L/M 6 CFM A2L Certified 2 Stage Vacuum Pump - VP67INT

• VP67INT Vacuum Pump

• 2 x 8oz RunQuick Oil Containers (Filled)

• Operator’s Manual

1 x Fieldpiece Recovery Unit - MR45INT

• MR45 Refrigerant Recovery Machine

• 10 Extra Mesh Screens for Input Port

• 3 Extra O-ring for Input Port

• Operator’s Manual

1 x Fieldpiece 2-Valve Digital Manifold with Data Logging and Micron Gauge - SM380vINT

• SM380vINT

• 2 x TC24 Wired Type-K Pipe Clamp thermocouple

• 1 x ATA1 Type-K Bead Thermocouple with clip

• 1 x ANC11 Padded Drawstring Case

1 x Fieldpiece Heated Diode Refrigerant Leak Detector - DR58

• Heat Diode Refrigerant Leak Detector (DR58)
• 1 x Heat Diode Sensor (RHD1)
• 5 x Replacement Filtered Tips (RFT6)
• Wall Charger with USB-C Cable (RCA3)
• Blow-Molded Case (ABM2)
• Operator’s Manual

1 x Fieldpiece Digital Refrigerant Scales 50KG - SRS1

• SRS1 Scale with wired Handle

• Back-lit handle

• Soft-sided Padded Case with Shoulder Strap

• Operators datasheet

FEATURES AND CAPABILITIES

Fieldpiece VP67 170 L/M 6 CFM A2L Certified 2 Stage Vacuum Pump - VP67INT

The NEW Fieldpiece VP67INT High-Efficiency Vacuum Pump

• 6 CFM (170 l/m) with Variable Speed DC motor
• 15 Micron ultimate Vacuum
• 1/2 HP AC motor
• Backlit oil reservoir to view the condition of oil and system
• RunQuick™ Oil Change System offers on-the-fly oil change in seconds
• Extra oil bottle storage
• Includes 2 x 237ml Oil filled RunQuick Oil Cartridges
• Water-resistant to withstand direct rain
• Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections
• Sturdy base stays upright
• Small footprint – 1,346 cubic inches
• Quarter-turn gas ballast with LED indicator
• Convenient, removable cord storage
• Suitable for A2L class refrigerants
• R32, R1234YF, R1234ZE, R512A, 419B, 439A and other

Fieldpiece Recovery Unit - MR45INT

Refrigerant Recycling has never been easier or faster with the MR45INT Recovery Machine

• Display: 2 x 10000 count LCD with status messages
• Backlight: Blue colour
• Measurement rate: 3.3 times per second, nominal
• Input Port Pressure Sensor Range: -30” Hg to 600 psig
• Output Port Pressure Sensor Range: -30” Hg to 600 psig
• High-Pressure Cutoff: 558 psig, nominal
• Resolution and Units: 1 psig (1” Hg), 0.05 bar (2 cmHg), 0.01 Mpa (2 cmHg), 5 Kpa (2 cmHg)
• Pressure Sensor Accuracy: ± 0.5 “ Hg (Vacuum) ± (0.6% of reading +2 psig)
• Final Recovery Vacuum: 14.9” Hg
• Compressor: Twin-cylinder reciprocating (oil-less)
• DC Motor: 1 HP (variable smart speed)
• Power Source: 220 - 240 VAC @ 50 Hz 1 phase
• Max Current Draw: 7.0 Amp
• Valve: Single dual-route ball valve
• Input Port Filtration: 9 mm mesh screen, stainless
• Dimensions: 376 mm x 250 mm x 344 mm
• Weight: 10 Kgs
• Operating Environment: 32°F to 122°F (0°C to 50°C)
• Storage Environment: -4°F to 140°F (-20°C to 60°C)
• Approved Refrigerants: R12, R12345YF, R134A, R22, R32, R401A (MP39), R401B, R401C, R402A, R402B, R404A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R412A, R500, R502, R507, R509.

Fieldpiece 2-Valve Digital Manifold with Data Logging and Micron Gauge - SM380vINT

The newly designed Fieldpiece Manifolds are stronger and more robust than ever before!

Data Logging

• Stores up to 9 jobs internally
• Easy download via USB port
• Displays % free storage space before logging begins
• Logs up to 7 days (168 continuous hours)

Tightness Test built-in feature

• Check for leaks after repairs or installations
• View pressure differential over time
• Timer tracks the duration of the test
• Temperature compensated with SL temp to avoid false positives

Customisable Menu

• Adjust auto power off duration
• Adjust backlight duration
• Set high and low vacuum alarms
• Select each unit of measurement individually

Receives Wireless Measurements

Add Job Link Tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SRS3 Refrigerant Scale.

Place pipe clamps in the perfect location. Monitor and record live refrigerant usage for precise recovery, charging, and documentation. View live air measurements and calculations while making adjustments.

Increase Professionalism with Job Link® System App

Streamline and simplify your call even further with the Job Link System App. See your measurements up to 100 metres away on your mobile device. Document your work and provide professional reports, including refrigerant weight usage, by simply connecting to the Job Link System app. Helps to reduce call-backs and increase profits.

• View measurements on SMAN and/or in Job Link App
• Monitor and record refrigerant weight
• Direct 100 metre wireless range (no transmitter needed)

Fieldpiece Heated Diode Refrigerant Leak Detector - DR58

Infrared Refrigerant Leak Detector for HVACR - Superior Sensitivity in a Rugged Design for HVAC-R

• 10-year sensor life

• Doesn’t trigger on soap bubbles and oil

• Compact – designed to fit in your hand

• Multiple alarms

• LED lighted tip and loud beep help find leaks in noisy and dark environments

• Sensitivity better than 0.03 oz/yr (1g/yr)

• Ruggedized and IP54-certified

• 10-hour battery charge

• Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph

• Non-conductive, sturdy probe that stays where you want it.

• Weighs less than a pound

• Works on A2L Refrigerants

Fieldpiece Digital Refrigerant Scales 50KG - SRS1

SRS1 Refrigerant weighing scales - Built rugged for the busy Fridgie.

Perfectly suited for the Residential or Light Commercial Technician with a weighing range up to 50 kgs in increments of 0.01kg.

Heavy Duty

The SRS1 has the ruggedness needed for the HVACR field with thick aluminium walls to maintain accuracy, and rubber feet and rubber pad to soften the impact of daily use. It's also water-resistant. The scale itself can withstand a downpour, while the handle needs a little more care because of the electronics inside (it can handle some rain, but please don't drop it in a lake).

Charging and Recovery Alarms

You can quickly set a charge or recovery alarm using the big numeric keypad without scrolling through digits. Once you dial in how much refrigerant to charge or recover you can work on other tasks, knowing the alarm will sound when it hits your target.

Easy to Carry
Weighing less than seven pounds, and housed in a heavy-duty soft-sided case, the SRS1 refrigerant scale is easy to throw over your shoulder when you need to carry other things or climb a ladder.

Get More Done

• Charging & recovery weight alarms
• Easy to carry
• 0.25 oz (0.01 kg) resolution
• Water-resistant

WARRANTY

1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)
