MTK10 Major Tech Apprentice Test Kit
DOWNLOAD DATASHEET

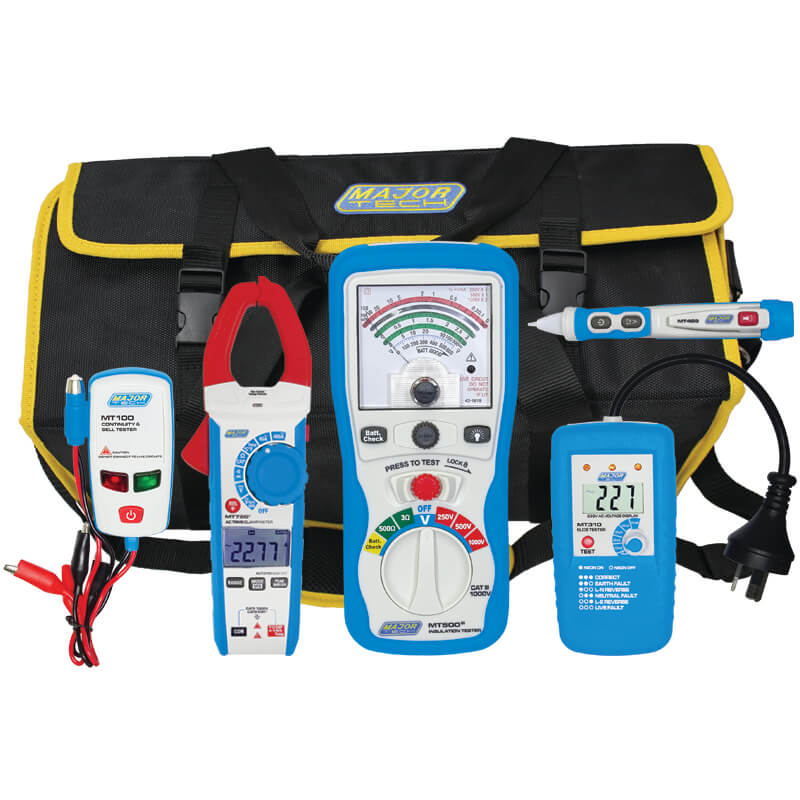

The Major Tech MTK10 is an Apprentice Test Kit that includes a clamp meter, an insulation tester, an ELCB tester, a non-contact detector and a continuity & bell tester in a heavy duty meter case.
WHAT'S INCLUDED
1 x Major Tech TRMS 400A AC Digital Clamp Meter MT720
- CAT III 600V and CAT II 1000V
- 4000-count backlit LCD display
- AC and DC Voltage 1000V
- AC Current 400A
- Duty Cycle 80%
- Ø30mm Cable Clamp size
- Measurement of DC voltage and AC voltage up to 1000V
- Temperature measurement from -20⁰C to 1000⁰C
- Capacitance to 99.99mF
- INRUSH Current Measurements
- VFD - Variable Frequency Drive voltage value
- NCV - Non-Contact Voltage Detector
- Peak Mode and Data Hold function
- Continuity buzzer and Diode Test
- Built-In Flashlight
- Auto Power Off
1 x Major Tech Non-Contact AC Voltage Detector MT403
- IEC61010-1 CAT IV 1000V
- IP67 waterproof and dustproof
- Frequency 60Hz
- AC Voltage 1000V
- Thinner probe tip for working with socket outlets
- Two modes, green indicates high voltage mode, Yellow LED 12V Mode
- Green LED means Power on, flashing red LED with beeper means Voltage detected
- The flash and beep rate increases as the detector gets closer to the voltage
- Power On/Off with silent mode
- 2m drop-proof
1 x Major Tech Continuity and Bell Tester MT100
- Distance 3000m (26 Gauge min)
- Lightweight and pocket size
- Remotely identify and label two wires using flashing remote probes
1 x Major Tech Insulation Tester MT500
- CAT IV 600V and CAT III 1000V
- AC Voltage 600V
- 3 test ranges 250V-500V-1000V
- Resistance 500ꭥ
- Data Hold function
- Live Circuit warning and buzzer
- 1mA output current on insulation test
- 200mA short circuit on continuity range
- Front panel zero adjustment for test lead resistance
- Automatic discharge after test
- Hands-free strap and magnet supplied as standard accessories
- Lock down Test Button for continuous use
- Rubber over mould housing
- Illuminated display
1 x Major Tech Earth Leakage Tester MT310
- CAT IV 300V and CAT III 600V
- AC Voltage Measurement 245V
- Compact, lightweight and easy to use
- Frequency Response 60Hz
- Correct Wiring Indication with neon lights
- Test Current 35mA
- Operates on 230V systems
- Fixed current settings from 10mA to 35mA
- AC Voltage measurement on LCD display
- Double injection rubber housing
- Separate test button
1 x Major Tech Heavy Duty Bag MTKBAG
- Specially designed by Major Tech to be compact with a shoulder strap
- Optional carrying case to house a range of meters the user needs to carry at any one time
- Adjustable compartments for bigger instruments or tools
- Pocket for instruction manuals or documentation
- Size – 220mm (H) x 450mm (W) x 200mm (D)
