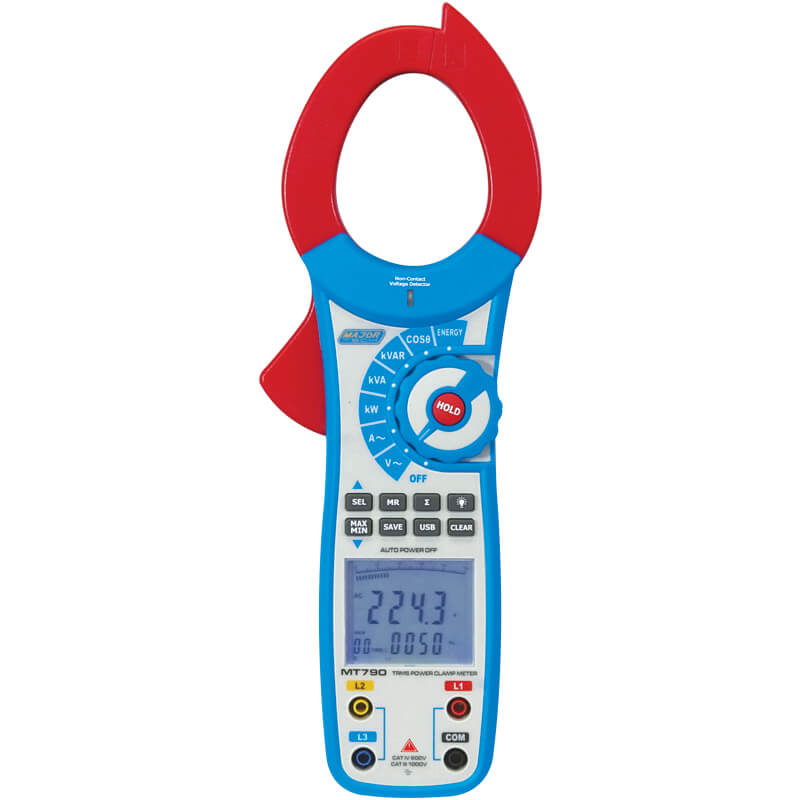

The Major Tech MT790 1000A AC Power Clamp Meter measures Single and 3-phase Power. This power Clamp meter operates as a True RMS Clamp Meter, Power Meter, Multimeter and AC Voltage Detector.
This Power Clamp Meter manually stores and recalls up to 99 data logs. USB interface for connection to a PC for data logging function with included software.
Measuring ranges include AC Current, Voltage, Frequency and Power including True Power, Apparent Power, Reactive Power and Active Power. Measures 1-Phase and balanced 3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Active Power (kWh), plus Power Factor and Phase Angle.
| FUNCTION | RANGE | ACCURACY |
| AC Current | 0.1A – 1000A | ±(2.0% + 5 Digits) |
| AC Voltage | 0.1V – 750V | ±(1.2% + 5 Digits) |
| Reactive Power | 0.01kVAr – 750.0kVAr | ±(4.0% + 5 Digits) |
| Frequency | 1Hz – 200Hz | ±(0.5% + 5 Digits) |
| Active Power | 0,01kW – 750,0kW | ±(3.0% + 5 Digits) |
| Apparent Power | 0.01kVAr – 750.0kVAr | ±(3.0% + 5 Digits) |
| Temperature | -50 to 1300°C | ±(5.0°C + 3°C Digits) |
| Active Energy | 1-9999kWh | ±(3.0% + 2 Digits) |
| Safety Specs | IEC61010-1 CAT IV 600V | ±(2.0°) |
| Power Factor | 0.3-1 cap or ind. | ±(2% +20) |
| Phase Angle | 0°-90° | |
| Jaw Size | 55mm | |
| Input Impedance | >10MΩ VAC | |
| Digital Display | 9999 | |
| True RMS Measurements | ACV, ACA | |
| AC Bandwidth | 50Hz - 60Hz | |
| Dimensions | 270 x 95 x 42mm | |
| Weight | 550g |
