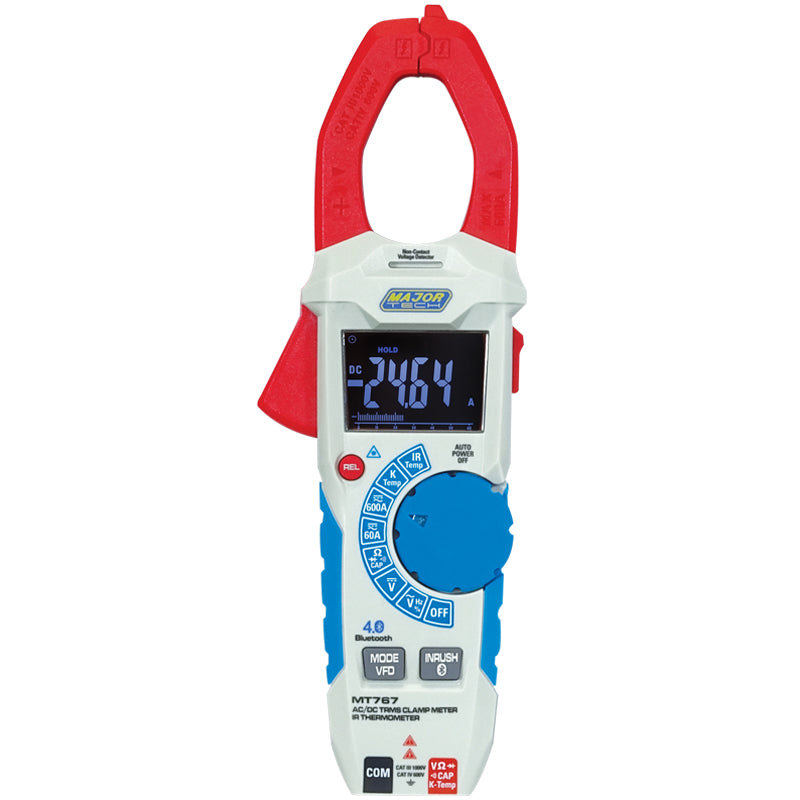

The Major Tech MT767 is a 600A AC/DC Thermometer Clamp Meter with Bluetooth technology. This clamp meter has a large 6000-count negative LCD display that provides fast sampling times and high-accuracy measurements.
The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organizing and sharing recordings. The meter measures 1000V AC/DC, frequency, capacitance and resistance measurements. The IR Thermometer has a spot ratio of 4:1 and measures temperature from -30⁰C to +350⁰C, plus there is a K-Type thermometer input for measurements up to 1000⁰C.
The 100ms Inrush current detects starting-up currents of electric motors, input surge currents, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives.
The added features of this 600A AC/DC Thermometer Clamp Meter include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, MAX/MIN and Data hold function plus a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing with a rugged design. This meter is a useful measuring tool for electricians, maintenance and HVAC environments.
| FUNCTION | RANGE | ACCURACY |
| DC Current | 0.01A - 600A | ± (2.8% + 5 Digits) |
| AC Current | 0.01A - 600A | ± (1.5% + 10 Digits) |
| DC Voltage | 1mV – 1000V | ± (0.8% + 4 Digits) |
| AC Voltage | 0.001V – 1000V | ± (1.5% + 5 Digits) |
| Temperature K-Type | -20 to 1000°C | ± (3°C + 3 Digits) |
| Resistance | 0.1Ω – 60MΩ | ± (2.0% + 5 Digits) |
| Capacitance | 0.1nF – 99.99mF | ± (4% + 6 Digits) |
| IR Temperature D:S 4:1 | -30.0 to 350.0°C | ± (2°C + 2 Digits) |
| Duty Cycle | 20.0% to 80.0% | ± (1.2% + 5 Digits) |
| Jaw Size | 33mm | |
| Input Impedance | >10MΩ DCV & >10MΩ VAC | |
| Digital Display | 6000 | |
| True RMS Measurements | ACA, ACV | |
| AC Bandwidth | 50Hz - 1000Hz | |
| Dimensions | 239 x 66 x 44mm | |
| Weight | 350g |
