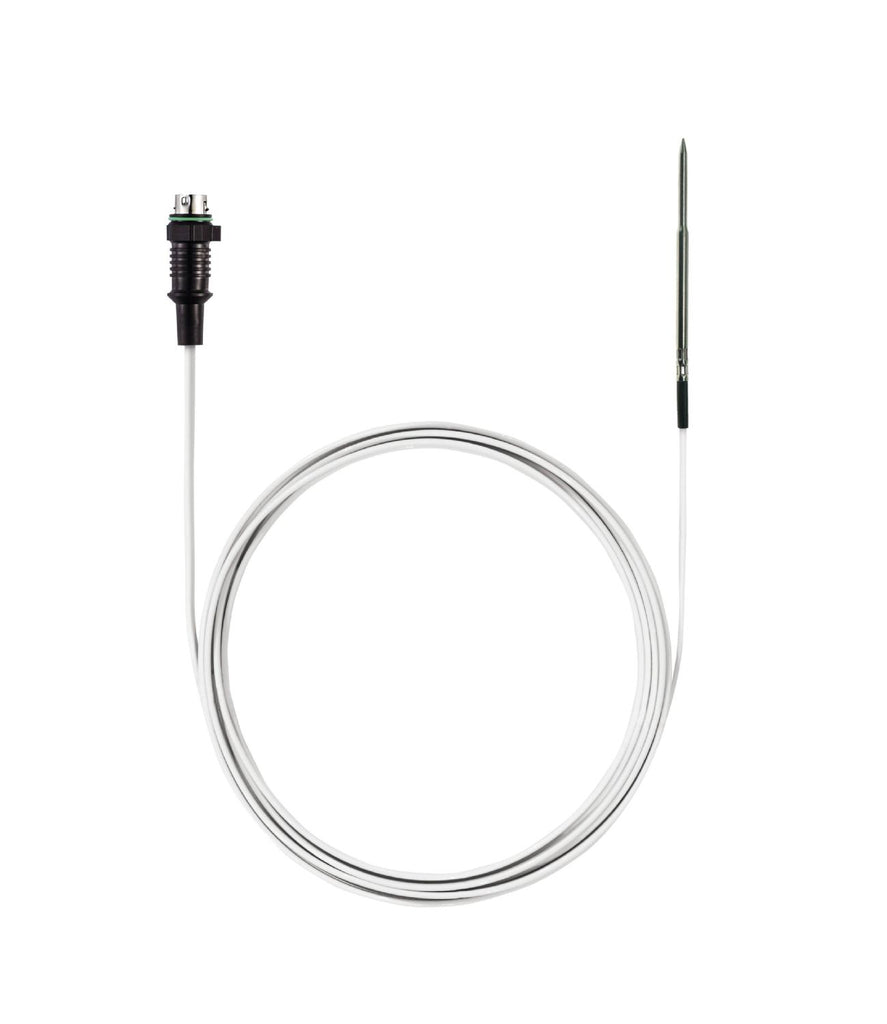

Testo Temperature Probe with Penetration Tip - 0572 1001

This temperature probe featuring a penetration tip is suitable for temperature measurements in pastes and semi-solid media and also in liquids and air. Thanks to its NTC sensor element, the probe provides precise temperature measurements with an accuracy of up to ±0.2 °C.

• Measuring range: -25 to +80 °C
• NTC probe with exceptionally flat cable (2 m long), which can be pushed through narrow openings, e.g. through slits in doors
• Temperature measurement in pastes and semi-solid media and also in liquids and air

Protection class IP 54 means that the temperature probe is protected against spray water.

The temperature probe features a thin, 2 m long ribbon cable. The ribbon cable can be pushed through narrow openings such as slits in doors or refrigerator seals.

This probe's response time t99 (the time it takes for the probe to register 99% of the jump in temperature) of 8 seconds refers to measurements in moving water at +60 °C. This response time is extended when, for example, measurements are taken in still liquid, pastes or air.*

*For air temperature measurements, the response time is about 40 – 60 times higher than the indicated value measured in water. If you should require a rather sluggish temperature probe to measure air temperature, this probe is particularly suitable because it does not take brief temperature peaks into account at all, or only to a very small degree, when measuring temperature. For example, if you are planning to use this probe to measure air temperature in the refrigerator, briefly opening the refrigerator door would not take into account the temperature fluctuation which results from mixing the warm room temperature with the refrigerator temperature.

Note: If you need an air temperature probe with a fast response time, your best choice would be the exceptionally fast temperature probe 0602 0493 which has a large measuring range.

SPECIFICATIONS

• Measuring range: -40 to +125 °C
• Accuracy:
• ±0.5 % of mv (100 to +125 °C)
• ±0.2 °C (-25 to +80 °C)
• ±0.4 °C Remaining Range
• Reaction time: 8 s
• Length probe shaft tip: 30 mm
• Diameter probe shaft: 5 mm
• Diameter probe shaft tip: 3.7 mm
• Length probe shaft: 90 mm
• Fixed cable: Yes
• Cable length: 2 m
• Protection class: IP54
