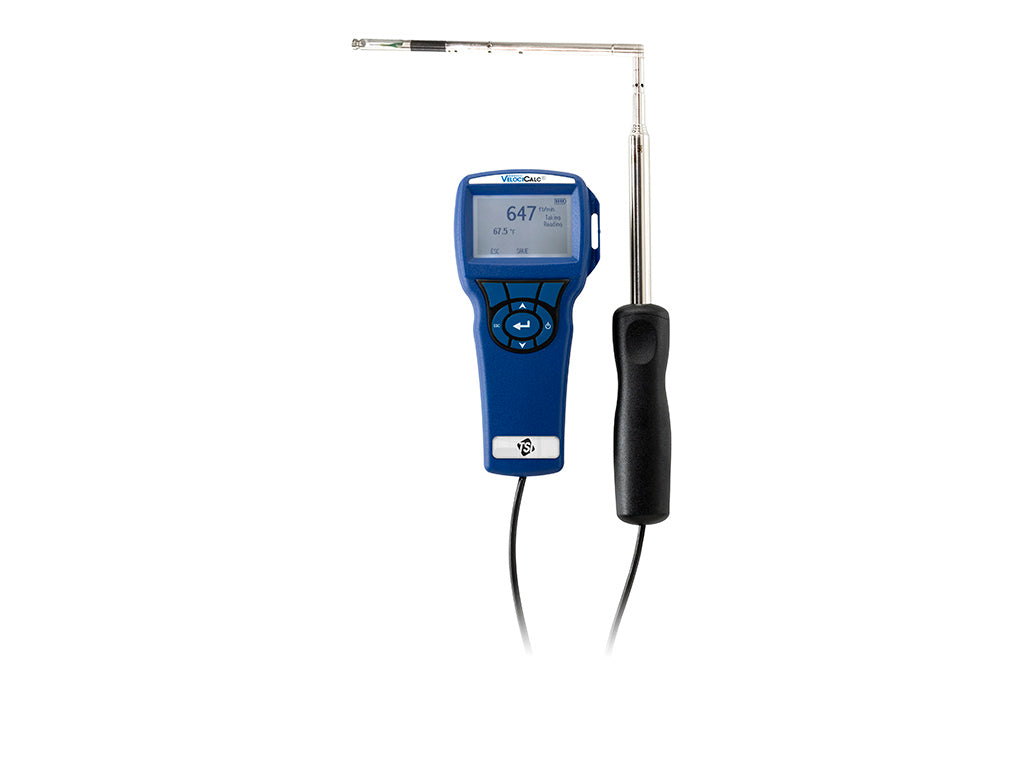

TSI VelociCalc Air Velocity Meter, Humidity Meter and Data Logger with Articulated Probe - 9545-A

SKU: TSI9545-A

TSI VelociCalc Air Velocity Meter, Humidity Meter and Data Logger with Articulated Probe - 9545-A

$2,452.07

GST included.

Shipping Ask about this product

ADD TO WISHLIST

DESCRIPTION

Contact Us Now For Estimated Delivery Time - This item is not always in stock

Cooltools HVAC-R offers a FLAT RATE Australia Wide delivery for orders up to 5KG. Get in touch for a custom shipping quote.

DOWNLOAD DATA SHEET

DOWNLOAD TSI HVAC ASSESSMENT HANDBOOK

The VelociCalc Air Velocity Meter 9545-A simultaneously measures and data log several ventilation parameters using a single probe with multiple sensors. Ideal for optimizing HVAC system performance, commissioning, plant maintenance, critical environment certification and duct traverses.

The VelociCalc 9545-A meter measures velocity, temperature, relative humidity, calculates flow, wet bulb and dew point temperature with an articulated, telescopic probe and data logging. It's like having multiple meters for the price of one.

FEATURES AND CAPABILITIES

Simple to operate
Accurate air velocity measurement

0 to 6,000 ft/min (0 to 30 m/s) range

Calculates volumetric flow, and actual/standard velocity
Displays humidity as % relative humidity, wet bulb or dew point temperature
Displays up to three measurements simultaneously
Data log 12,700+ samples and 100 test IDs
Articulated probe version (9545-A)

APPLICATION

HVAC system performance
Commissioning
Plant maintenance
Critical environment certification
Duct traverses

WHAT'S INCLUDED

Instrument with articulated probe
Hard carrying case
4 alkaline batteries
USB cable and LogDat2™ Downloading Software
Operation and service manual
Calibration certificate

SPECIFICATIONS

TSI 9545-A
Velocity
Range	0 to 6,000 ft/min (0 to 30 m/s)
Accuracy	±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater
Resolution	1 ft/min (0.01 m/s)
Volumetric Flow Rate
Range	Actual range is a function of velocity and duct size
Duct Size	1 to 250 inches in increments of 0.1 in. (1 to 635 cm in increments of 0.1 cm)
Temperature
Range	14 to 140°F (-10 to 60°C)
Accuracy	±0.5°F (±0.3°C)
Resolution	0.1°F (0.1°C)
Relative Humidity
Range	5 to 95% RH
Accuracy	±3% RH
Range	0.1% RH
Data Logging
Storage	12,700+ samples and 100 test IDs
Logging Interval	1 second to 1 hour
Time Constant	User selectable
Articulating Probe Dimensions
Articulating Section Length	19.7 cm (7.8 in)
Diameter of Articulating Knuckle	9.5 mm (0.38 in)

General Technical Data
Operating Temperature (Electronics)	40 to 113°F (5 to 45°C)
Operating Temperature (Probe)	14 to 140°F (-10 to 60°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Power Requirements	Four AA-size batteries or AC adapter
Meter Probe Length	40 in. (101.6 cm)
Meter Probe Diameter of Tip	0.28 in. (7.0 mm)
Meter Probe Diameter of Base	0.51 in. (13.0 mm)
Meter Dimensions	3.3 in. x 7.0 in. x 1.8 in. (8.4 cm x 17.8 cm x 4.4 cm)
Meter Weight	0.6 lbs. (0.27 kg)

WARRANTY

1 Year Manufacturer Warranty
