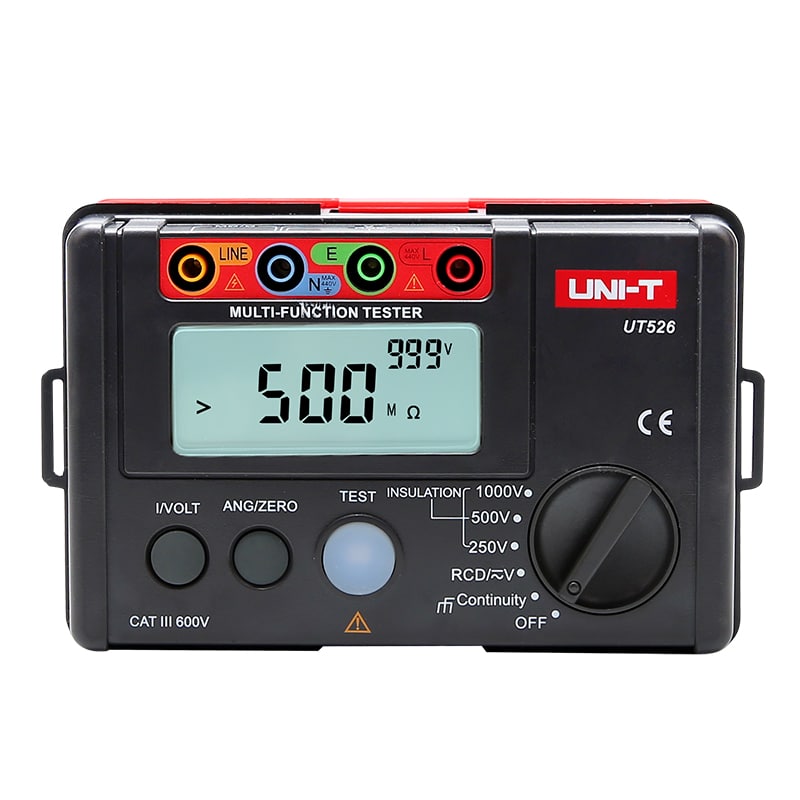

UT526 is a multifunctional electrical installation tester. It can be used to test insulation resistance, RCD status, low resistance continuity, and voltage measurements.
UT526 can also be used to test the power distribution system, lightning protection system and wiring systems to ensure safe operations. Incorporates 2 functions in one instrument. Insulation Resistance and RCD testing with the added bonus of continuity testing and voltage measurement completing its specifications.
| Range | UT526 | ||
| Insulation resistance (Ω) | Test voltages | 250V/500V/1000V | ±10% |
| 250V | 0.05MΩ~200MΩ | ±(5%+5) | |
| 500V | 0.05MΩ~300MΩ | ±(5%+5) | |
| 1000V | 0.05MΩ~500MΩ | ±(5%+5) | |
| Load current | 250V (R=250kΩ) 1mA | ±10% | |
| 500V (R=500kΩ) 1mA | ±10% | ||
| 1000V (R=1MΩ) 1mA | ±10% | ||
| Short circuit current | <2mA | √ | |
| RCD | Operating voltage (Freq.) | 220V (45Hz~65Hz) | ±10% |
| Test current | 10mA/30mA/100mA/300mA | 0~20% | |
| Trip time | 0ms~2000ms, 1Δn general (10mA) | ±(5%+2) | |
| 0ms~500ms, 1Δn general | |||
| 0ms~300ms, 1Δn general (100mA, 300mA) | |||
| Low resistance continuity | Range | 0Ω~2000Ω | ±(2%+5) |
| Test voltage | Around 5V | √ | |
| Test current | >200mA (R<2Ω) | √ | |
| Voltage measurement (V) | DC voltage | 0~440V | ±(5%+2) |
| AC voltage | 0~440V | ||
| Frequency (For reference only) | √ | ||
| General Characteristics | |||||
| Power | 1.5V battery (LR6) x 6 | ||||
| Display | 71mm x 34mm | ||||
| Product colour | Red and grey | ||||
| Product net weight | 380g |
||||
| Product size | 160mm x 100mm x 71mm | ||||
