SKU: UT682
Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Uni-T Wire Tracker UT682

$81.39

Tax included. Shipping calculated at checkout.

Shipping Ask about this product

ADD TO WISHLIST

Vendor: Uni-T
Product Type: Wire Tracker
Barcode:

DESCRIPTION

UT682 Uni-T Wire Tracker

DOWNLOAD MANUAL

DOWNLOAD BROCHURE

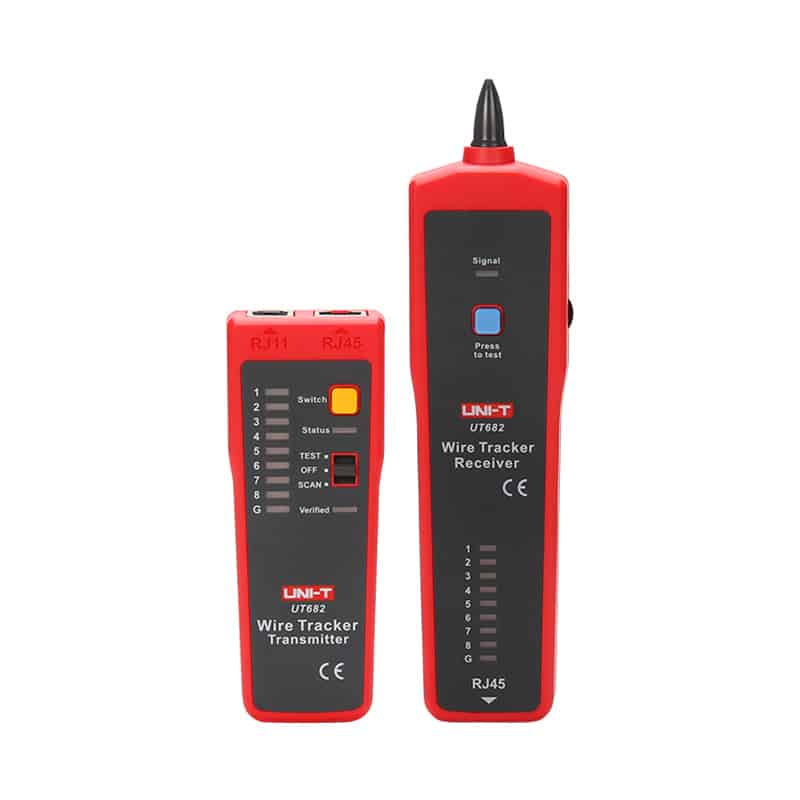

The UT682 Wire Tracker includes a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation.

The UT682 can diagnose ethernet cables and is a highly recommended tool for debugging communication cables and audio/video cables.

FEATURES

Telephone/ethernet/power cable tracking
Ethernet cable wiring sequence verification
Headset connection for noisy environment
DC level test can check voltage level and polarity
Fast open/short circuit test
Dual measurement cycle mode
Low battery indication
Volume adjustment

WHAT'S INCLUDED

1 x UT682 Wire Tracker
12-month warranty

SPECIFICATIONS

UT682	Range
Wire tracking features	Wire types		LAN cable\telephone line\coaxial cable\electric wire
	Indication light for signal strength		√
	Live switchboard wire tracing		√
	Switchboard wire tracing distance		≥100m
	Telephone lines tracking distance		≥3000m
	Unshielded cables tracking distance		≥320m
	Shielded cables tracking distance		≥320m
	Open and short circuit test		√
	Polarity indication for telephone lines	DCV function, range: ±(5V~52V)	√
	Telephone lines and LAN cables distinction	Jacks distinction	√
	Broken wire tracking		√
	Transmitter output voltage		≥12V peak-peak
	Transmitter low battery indication		6.6V±0.5V
	Transmitter power supply	9V battery	√
	Max transmitter working current		25mA
	Headphone jack for the receiver		√
	Receiver power supply	9V battery	√
	Max receiver standby current	~10mA	√
	Max receiver operating current	<40mA (AC, RMS)	√
Wire alignment	Line sequence measurement	9 LEDs (LED1~LED8, LED_G)	√
	Line sequence measuring speed	Fast and slow selectable	√
	LAN cable: shielded/unshielded indication		√
Transmitter input voltage protection			52V DC
Operating environment	Operating temperature: 0~40℃; Storage temperature: -10~50℃ Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m

General Technical Data
Product Colour	Red and Grey
Standard Accessories	9V battery x 2, RJ11 cable, RJ45 cable, RJ11 cable with alligator clips
Standard Individual Packing	Blister, carrying bag, English manual
Dimensions	Transmitter-125mm x 48mm x 28mm Receiver-195mm x 48mm x 30mm
Weight	Transmitter: 125g Receiver: 153g
