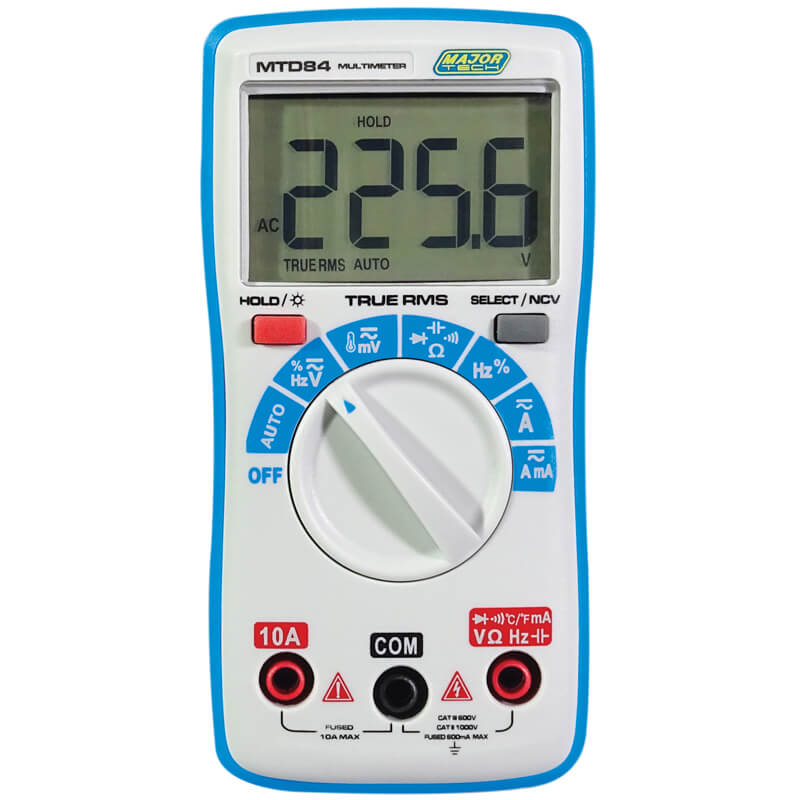

The MTD84 is a compact True RMS Auto Ranging Multimeter with a 6000-count LCD backlit display. The Smart mode, “AUTO”, is a function that automatically identifies DC voltage, AC voltage, Resistance and continuity and automatically displays the measurements. There is a built-in Non-Contact voltage detector, by pressing the NCV button continuously the LCD displays “EF” and will display “—-” when voltage is detected and the buzzer sounds.
This meter meets the International Standard IEC 61010-1 CAT III 600V and is ideally suited for everyday use by electricians, electronic technicians, students and DIY users.
This Auto Ranging Multimeter has a built-in tilt stand for hands-free convenience as well as low battery indication and auto power off.
| Function | Range | Accuracy |
| DC Voltage | 0.01mV - 1000V | ± (0.5% + 3 Digits) |
| AC Voltage | 0.01mV – 750V | ± (1.0% + 3 Digits) |
| DC Current | 0.1mA – 10A | ± (1.2% + 3 Digits) |
| AC Current | 0.1mA – 10A | ± (1.5% + 3 Digits) |
| Resistance | 600.0Ω – 60MΩ | ± (0.5% + 3 Digits) |
| Duty Cycle | 1%-99% | ± (0.1% + 2 Digits) |
| Frequency | 99.99Hz – 9.999MHz | ± (0.1% + 2 Digits) |
| Capacitance | 9.999nF – 10mF | ± (2.0% + 5 Digits) |
| AC Bandwidth | 50Hz to 400Hz | |
| True RMS Measurement | Yes | |
| Continuity | Yes | |
| Built-in buzzer | Yes | |
| Diode Test | Yes | |
| Overrange Indication | Yes | |
| Data Hold | Yes | |
| Back Light | Yes | |
| Enclosure | ABS/PVC | |
| Safety Specs | CatIII 600V | |
| Power Source | 2 x 1.5V AAA battery | |
| Weight | 138g (incl. battery) | |
| Dimensions | 130 x 65 x 32mm |
